BaseMount

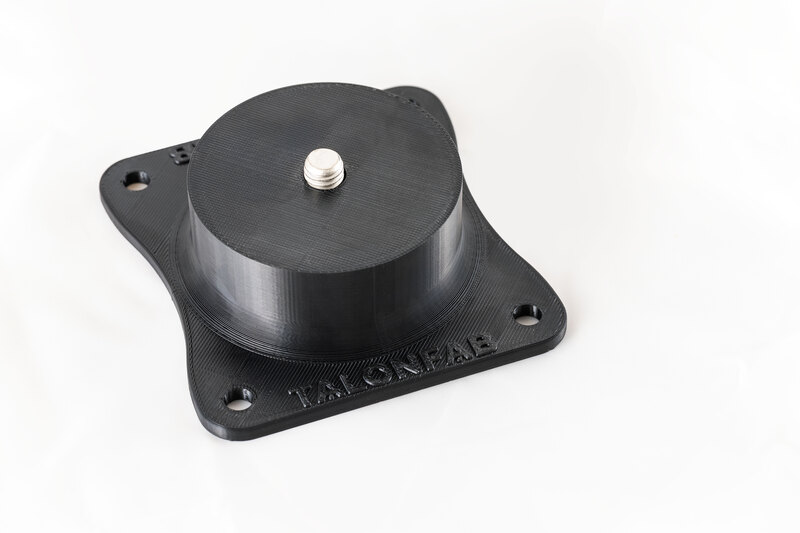

Turn fixed structures into rock-solid camera platforms. BaseMount is a rugged 3D-printed plate that bolts your tripod head to flat or curved surfaces. Use it inside a permenant hide, on a window sill, across a post or railing, for stable, weather-resistant support where tripods won’t go.
Compared to tripods in tight spaces, the BaseMount is a simpler, more stable option. Tripods take up floor space, tip over, and don’t always fit. BaseMount solves this by letting you fix a tripod head exactly where you need it — securely, permanently and with repeatable precision.
What’s Included
1 × 3D-printed BaseMount with tripod head bolt
What You’ll Need to Supply
A compatible tripod head (standard 3/8" mount)
M6 bolts or screws for your mounting surface
Key Benefits
Compact Stability – Holds your tripod head exactly where you want it, no legs required.
Mount Anywhere – Posts, railings, window sills, hide walls, or benches.
Permanent or Portable – Fix it permanently, or strap it on for temporary setups.
Low-Profile Design – Ideal for tight hides, indoor perches, or overhead studio work.
Field-Ready Build – Weather and UV resistant material for long term outdoor use.
Tech Specs
Spec | Detail |
|---|---|
Material | 3D-printed ASA (black, semi-gloss finish) |
Mounting | 316 stainless steel 3/8" bolt (fits most tripod heads) |
Base Options | Flat with 4 bolt holes + curved underside for round posts |
Weight | ~110 g |
Dimensions | 90 mm (L) × 95 mm (W) × 28 mm (H) |
Max Load | 8 kg (tripod head + camera + lens) |
Made in | Australia, by TalonFab |
Safe Use
The BaseMount is designed for fixed mounting of tripod heads and attached camera gear. Always ensure the surface you’re attaching to — such as a hide wall, window sill, railing, vehicle tray, or boat rail — is strong enough to support your setup. Avoid weak, thin, corroded, or rotted materials.
Use appropriate fasteners (e.g., M6 bolts, screws, or straps) suited to your mounting surface. For outdoor use, corrosion-resistant hardware is strongly recommended. After installation, test stability before mounting your gear — the tripod head and camera should sit steady and secure.
Mount gear directly above the BaseMount. Avoid positioning that creates side loads or overhangs, which may cause instability or mount failure.
Do not use where the camera becomes a dynamic load — such as on moving vehicles, boats in motion, or vibrating machinery. The BaseMount is not designed to handle impact or sustained motion, and such conditions may exceed load limits or loosen mounts over time.
Inspect regularly, especially after heavy weather, vehicle travel, or salt exposure. Replace any worn or corroded hardware. Not suitable for safety loads or human support.
